Technical Architecture

Huddl is a pnpm workspaces monorepo with three parts: a Next.js frontend, a Cloudflare Worker backend built around one Durable Object per room, and a small shared package for the wire protocol between them.

huddl/
├── apps/huddl/            Next.js 16 app, deployed to Cloudflare Workers
│                          via @opennextjs/cloudflare
├── services/game-service/ Cloudflare Worker: LobbyDurableObject (one DO per room)
└── packages/protocol/     @huddl/protocol, shared wire types and close/error codes

Browser
  -> huddl (Next.js, Cloudflare Worker)
      -> better-auth (Google OAuth) -> D1 (users/sessions) + KV (session cache)
      -> WebSocket -> game-service Worker -> routes to the room's Durable Object
                                                -> LobbyDurableObject (per room)

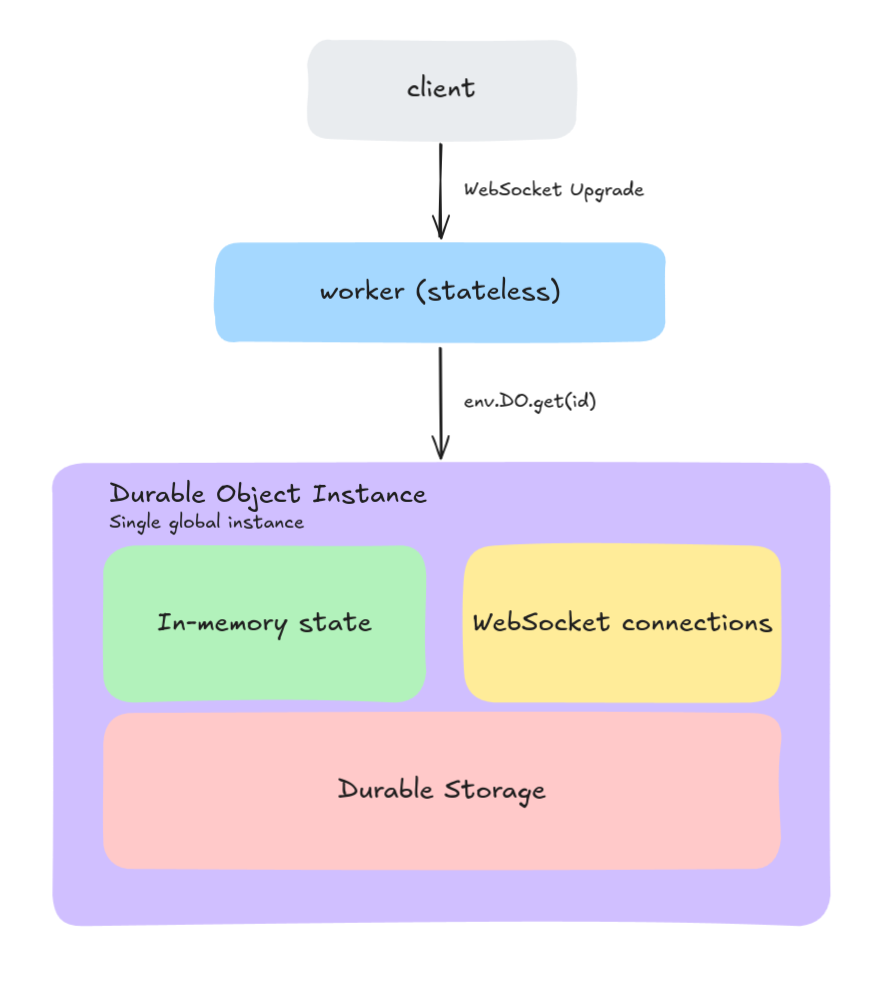

Why Durable Objects

A room's state (who's seated, whose turn it is, current timers) needs exactly one place that owns it, reachable from every connected socket, without a database round-trip on every message. I needed to spin up isolated websocket instances that could hold state and keep it consistent with the connected clients, and Durable Objects are designed for exactly this. Cloudflare routes every request for a given room ID to the same object instance, and everything in it runs on a single thread. There's no distributed locking or conflict resolution to write, race conditions simply don't happen.

All durable objects are single-threaded with compute and storage in the same thread.

That consistency fits the use case well. We care more that the game state appears the same for all connected players than we care that players stay connected. A network drop can be handled gracefully in the game logic itself, depending on the rules of the game.

The tradeoff is location. A Durable Object is spun up in the region closest to where the creation request was made, and it stays there. Most rooms will be friends or family in the same part of the world, but a player connecting from far away will see some extra latency.

One cloud, not two

apps/huddl originally deployed to Vercel while game-service ran on Cloudflare Workers. Two platforms meant no shared bindings, so the Next.js app couldn't touch the same storage the game Worker could. Adding auth forced the issue: better-auth needs a database for users and sessions plus a fast cache for session reads, which map naturally onto D1 (SQLite) and KV. The cleanest way to get those bindings into the Next.js app was to run it on Cloudflare too, so the frontend moved to @opennextjs/cloudflare, which compiles the Next.js build into a Worker. Both apps have lived on one platform since.

Before: multi-cloud, no shared bindings between the two apps

After: single cloud, both apps with direct access to D1 and KV

The four layers

The backend is a layered architecture, clearly separating responsibilities at every layer. The layers communicate with each other through a small custom protocol.

Layer 1: Worker entry. A thin router that forwards WebSocket upgrade requests to the right Durable Object. This is the entry point to the lobby and handles assigning clients to the correct socket.

Layer 2: The Durable Object shell. LobbyDurableObject (lobby-do.ts) is the base of the runtime. It manages client connections, guards against abusive ones, interfaces with the storage API, and handles the event loop (alarms, WebSocket events). It does nothing but call into the engine and execute the effects the engine returns.

Layer 3: The lobby engine. engine.ts is a pure state machine holding the root state for the lobby (players, hostId, selectedGame, timers, game state). Every handler (handleJoin, handleClientMessage, handleDisconnect, handleTimerFired) takes the current RootState plus an EngineContext carrying every impurity the engine needs (clock, RNG, the connected player IDs, the game registry) and returns a new state plus a list of effects to run (send, broadcast, sendSnapshot, wipe). The engine never touches a socket, storage, or Date.now() directly. It owns everything that is lobby-level rather than game-level: join and identity rules, reassigning the host when the host disconnects, and cleanup when a room empties out.

Layer 4: The game. Games follow the strategy pattern. A game is one pure module implementing the GameDefinition interface (init, onMessage, onTimer, onPlayerJoined/Disconnected/Reconnected, snapshotFor), and the engine runs it through that interface without knowing its internal implementation. Games never see sockets, storage, or lobby state. A game only touches its own state and talks to the lobby through effects:

type GameEffect =
  | { kind: "broadcast"; event: unknown }
  | { kind: "send"; to: PlayerId; event: unknown }
  | { kind: "setTimer"; id: string; at: number }
  | { kind: "clearTimer"; id: string }
  | { kind: "end"; summary: unknown };

The engine wraps those effects on the way out, namespacing the game's timers as game: and wrapping its broadcasts as a game-event, so it never needs to know what the game actually does.

Two things fall out of this split for free:

• Every engine handler is unit-testable with a fake clock and RNG. No need to spin up a Durable Object to test game logic.
• Adding a game means adding one file that implements GameDefinition. The lobby code doesn't change.

WebSocket Hibernation and a single alarm

The DO accepts sockets through Cloudflare's WebSocket Hibernation API (ctx.acceptWebSocket with serializeAttachment/deserializeAttachment) instead of holding them in an in-memory map. That lets the object hibernate, meaning it gets evicted from memory, while a room sits idle with open connections. The player's ID rides on the socket's serialized attachment, so it survives the hibernate and wake cycle.

Timers (round countdowns, cleanup after everyone leaves) aren't setTimeout calls. They're deadlines stored in RootState.timers, reconciled to a single DO alarm set to the earliest deadline on every state commit. One alarm fire can resolve several expired timers at once, so the object never holds more than one pending wake-up no matter how many timers a game schedules.

Data model

Per room (RootState, one Durable Object, one storage key):

• players: display name, join time, and either a userId/handle for signed-in players or a guestId for guests. The guest ID is client-minted and unsigned. It's a hint for reclaiming a seat on reload, never a trust boundary.
• hostId, selectedGame, playing
• game: the active game's own opaque state. The lobby engine never inspects its shape.
• timers: namespaced lobby:/game: IDs mapped to epoch-ms deadlines.

Snapshots are per player, not shared. snapshotFor(state, playerId) is part of the GameDefinition contract specifically so a game can hide information per viewer. Imposter's snapshot resolves the role (crew name vs. imposter hint) based on who's asking, so the secret never serializes into a message the wrong player receives.

Real-time delivery

One WebSocket per player, upgraded through the game-service Worker straight to the room's Durable Object. Messages are namespaced at the protocol level: lobby events (join, seat, host change) are flat, and a game's own events are wrapped as { type: "game-event", event }. The frontend's top-level reducer only ever branches on lobby vs. game, never on which specific game is running.

On the client, a Zustand store (createLobbyStore) owns the socket as a module-level singleton keyed by room code, so it survives component remounts. The Web Locks API enforces a single connection per room per tab, so a second tab open on the same room is told so instead of opening a competing socket. A dropped connection reconnects with exponential backoff, capped, giving up after about a minute of failures. The wire protocol has no sequence numbers. The resync story is that the worker always re-sends a full lobby-state snapshot on connect and reconnect, so there's no delta-replay path to get wrong.

Auth: session verification inside the Worker

better-auth + better-auth-cloudflare runs in the Next.js app, backed by D1 (through Drizzle) as the source of truth for users and sessions, with Workers KV as a session cache. The interesting part is the WebSocket upgrade, which hits the game-service Worker directly. That's a separate Worker with its own bindings, and the obvious approach would be to call an API route on the app and ask "is this session valid?". But that adds a network hop to every single connection attempt, and it makes the game runtime depend on the frontend being reachable at all.

Instead, the Worker verifies the session itself, in three steps:

1. Read the cookie. The upgrade request carries better-auth.session_token, whose value is the token plus an HMAC-SHA256 signature of it.
2. Check the signature locally. WebCrypto verifies the HMAC against BETTER_AUTH_SECRET, a secret both Workers share. A forged or tampered cookie dies here without any storage read.
3. Look up the session. KV first, since it's the fast path. KV is eventually consistent though, so a miss falls back to a single D1 query joining the session and user tables, the source of truth.

Session Verification Flow: the upgrade request path

An invalid or missing session doesn't reject the connection. It degrades to a guest identity, since joining an existing room shouldn't require an account. Creating a room is the one action gated behind a real session, and that gate lives in the lobby engine's join logic (CLOSE_SIGNIN_REQUIRED), not in route middleware.

Design decisions and their tradeoffs

Known limitations

• No real user-facing observability yet. Sentry catches unhandled exceptions and source-maps them, but there's no metrics or tracing layer for connection counts, room lifetimes, or message latency.
• Infra is defined in wrangler.jsonc per app/service, not a single infra-as-code tool. There's no Terraform-style plan/apply step that covers D1, KV, and both Workers together.
• Team Auction, the third game named in the README's launch lineup, isn't built yet. A fourth game (tap-race) exists on the backend but is intentionally never exposed to players. It's a minimal fixture that exists solely to exercise every hook of the GameDefinition contract.

CI/CD

GitHub Actions runs one shared checks job (typecheck, lint, both test suites, a production build) on every PR and on pushes to main/staging. Three separate, path-filtered workflows handle deploys: game-service to production on main, huddl to production on main (via @opennextjs/cloudflare, plus a D1 migration step ahead of the deploy), and a mirrored staging pipeline for both on the staging branch. The deploy workflows re-run the same typecheck and test steps rather than trusting a prior green check.

One detail worth calling out: wrangler types generates the Env interface for each Worker, but it only includes secrets like BETTER_AUTH_SECRET if a .dev.vars file exists when it runs. Real secrets never touch CI, so each Worker commits a .dev.vars.example with placeholder values, and CI copies it into place before generating types and typechecking. The secret names type-check, and the secret values stay out of the repo.
